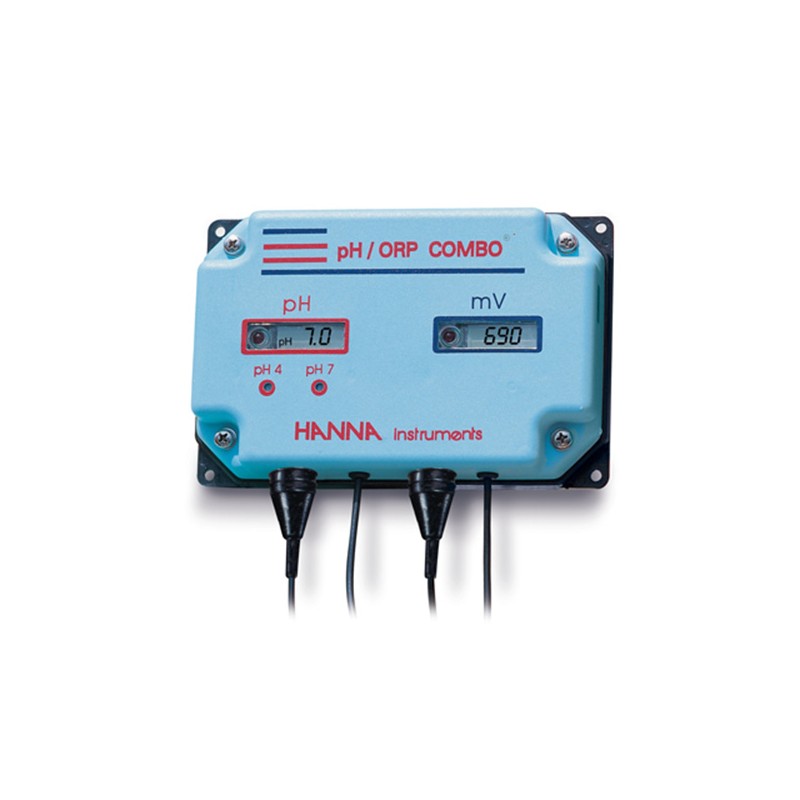

HI-981406 pH and ORP Indicator
In Stock 3 Items available
HI-981406
HI 981406 has been specially designed for water treatment and swimming pool applications where both pH and ORP (Oxidation Reduction Potential) need to be monitored. Instead of having to source two different meters and worry about wiring and compatibility, you can now continuously measure both pH and ORP with HI 981406.
The HI-981406 has been specially designed for water treatment and swimming pool applications where both pH and ORP need to be monitored. Instead of sourcing two meters, users can now continuously measure both pH and ORP with HI-981406.
There are two separate adjustable set points for pH and ORP. Once the pH set point is exceeded, the appropriate LED light will come on to alert the operator. Likewise, once the ORP level drops below the set point, the red ORP light will stay on.
HI-981406 is supplied with a HI-1283 ground probe. The HI-1283 ground probe provides users with more reliable readouts by suppressing current effects, which are found in pools. The optional HI-2114P/2 pH electrode and HI-3214P/2 ORP electrode are designed specifically for swimming pools. Both probes are constructed with a specially designed fibre salt-bridge making each particularly resistant to clogging in pools.
Key features
LED alarm signals Continuous monitoring Displays pH and mV simultaneously Adjustable set points
Supplied with
HI 1283 grounding bar HI 70004 pH 4.01 buffer solution sachet HI 70007 pH 7.01 buffer solution sachet Calibration screwdriver 12 VDC adapter Instructions
Read More
Range | pH | 0.0 to 14.0 pH |
Range | mV | -999 to 999 mV |
Resolution | pH | 0.1 pH |
Resolution | mV | 1 mV |
Accuracy | pH | ±0.2 pH |
Accuracy | mV | ±5 mV |
pH Calibration | manual, 1 or 2 points | |
Setpoint | pH: adjustable from 5.0 to 9.0 pH; ORP: adjustable from 350 to 850 mV | |
Alarm | 2 LED's (1 for pH and 1 for ORP) light up when: pH value > setpoint and/or ORP value < setpoint | |
Probe | HI 2114P/2 replaceable pH electrode (not included) HI 3214P/2 replaceable ORP electrode (not included); HI 1283 potential matching pin with 2 m (6.6') cable (included) | |
Input Impedance | 1012 Ohm | |
Power Supply | 12 Vdc power adapter (included) | |
Environment | 0 to 50°C (32 to 122°F); RH max 95% | |
Dimensions | 165 x 110 x 35 mm (6.4 x 4.3 x 1.4") | |
Weight | 300 g (10.6 oz.) |
