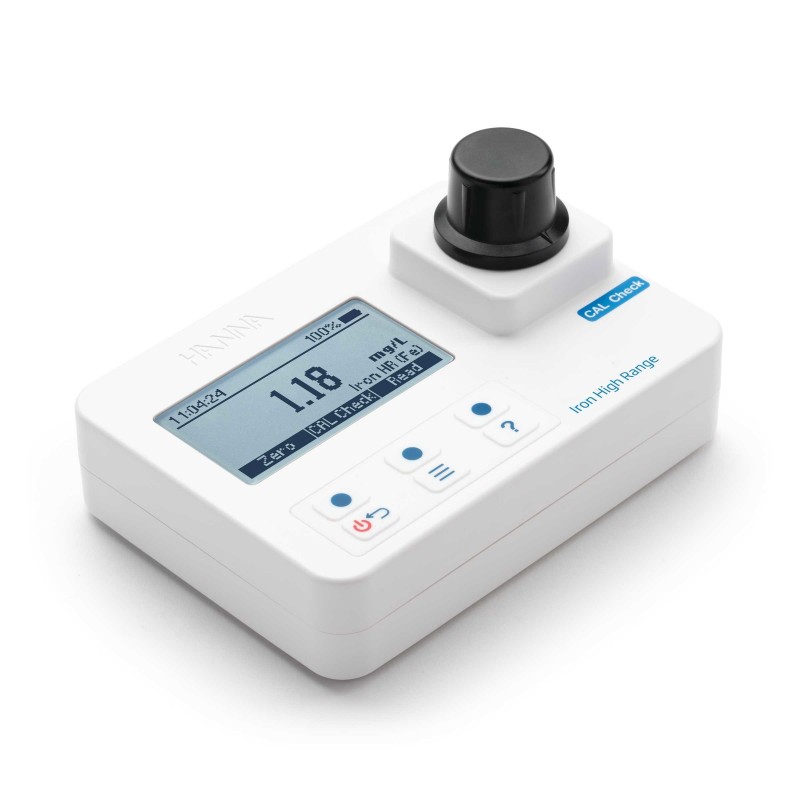

HI-97721 Iron High Range Portable Photometer
In Stock 24 Items available
HI-97721
The HI-97721 is an advanced portable photometer for the measurement of High Range Iron in water.
This meter offers a superior optical system that utilises a reference detector and narrow band interference filters for extremely fast and repeatable measurements.
Adaptation of Standard Methods for the Examination of Water and Wastewater, 23rd edition, 3500-Fe B, Phenanthroline Method.
About the HI-97721 Iron HR portable photometer
- Range: 0.00 to 5.00 mg/L (as Fe)
- Advanced LED optical system – LEDs have a much higher luminous efficiency, providing more light while using less power. They also produce little heat, which could otherwise affect electronic stability.
- CAL Check™ - Validate the performance of the instrument at any time and apply a user calibration using CAL Check cuvettes made with NIST traceable standards. The CAL Check screen guides the user step-by-step through the validation process and user calibration.
- Auto logging
- GLP – Review of the last calibration date
- On-screen tutorial mode with animations – the built in tutorial mode guides users step-by-step through the measurement process.
- Waterproof and floating IP67 case
- Auto-shut off – Automatic shut off after 15 minutes of inactivity and 30 minutes before a read measurement.
- Battery status indicator – Indicates the amount of battery life left.
- Built-in timer – Display of time remaining before a measurement is taken. Ensures that all readings are taken at the appropriate reaction intervals for the test being performed.
- Error messages – Messages on display alerting to problems including on cap, high zero, and standard too low.
- Unit of measure – Appropriate unit of measure is displayed along with reading.
About Iron
Iron is naturally present in water in low concentrations, but it reaches high concentrations in wastewater effluents. The iron concentration in water needs to be monitored because it becomes harmful above certain levels.
In domestic water, for instance, iron can unpleasantly alter the taste, stain laundry, damage kitchenware, and favour the growth of certain bacteria.
Iron is also an indicator of ongoing corrosion in water cooling and heating systems.
Moreover, iron is normally monitored in mining wastewater to avoid contamination.
Read More
| Range | 0.00 to 5.00 mg/L (as Fe) | |
| Resolution | 0.01 mg/L | |
| Accuracy @25°C | ±0.04 mg/L ±2% of reading at 25°C | |
| Method | Adaptation of Standard Methods for the Examination of Water and Wastewater, 23rd Edition, 3500-Fe B, Phenanthroline Method | |
| Light Source | light emitting diode | |
| Bandpass filter | 525nm | |
| Bandpass filter bandwidth | 8nm | |
| Bandpass filter wavelength accuracy | ±1.0nm | |
| Light Detector | Silicon photocell | |
| Cuvette type | Round 24.6mm diameter (22mm inside) | |
| Auto logging | 50 readings | |
| Display | 128 x 64 pixel B/W LCD with backlight | |
| Auto-off | After 15 minutes of inactivity (30 minutes before a READ measurement) | |
| Battery type/life | Alkaline 1.5 V AA (3)/ >800 measurements (without backlight) | |
| Environment | 0 to 50°C; 0 to 100% RH | |
| Dimensions | 142.5 x 102.5 x 50.5 mm | |
| Weight | 380g | |
| Ordering information | HI-97721 is supplied with sample cuvettes (2), sample caps (2), plastic stoppers (2), 1.5V AA batteries (3), instrument quality certificate and instruction manual. Also available as a kit: HI-97721C includes photometer, CAL Check cuvette A & B for iron HR, sample cuvettes (2), sample caps (2), plastic stoppers (2), 1.5V AA batteries (3), cuvette wiping cloth, scissors, instrument quality certificate, instruction manual and rigid carrying case. | |
| Reagents and Standards (sold separately) | HI-97721-11 CAL Check standard cuvettes for iron HR HI-93721-01 Iron HR reagent (50 tests) HI-93721-03 Iron HR reagents (150 tests) |
