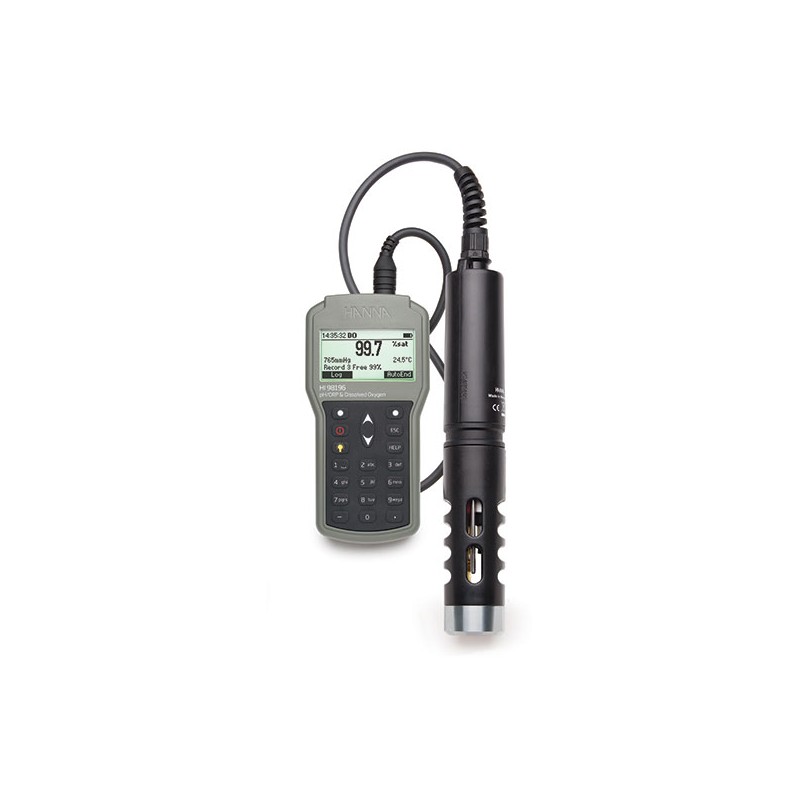

HI-98196 Multiparameter Waterproof Meter
In Stock 1 Item available
HI-98196
The HI-98196 measures pH/mV, ORP, Dissolved Oxygen, Atmospheric Pressure and Temperature. Supplied with a 4m cable.
HI-98196 provides multi-parameter measurement in a compact and rugged IP67 waterproof enclosure. Ideal for demanding application, this meter features our rugged, quick connect multi-function probe with field replaceable sensors. The HI-98196 measures pH/mV, ORP, Dissolved Oxygen, Atmospheric Pressure and Temperature
A backlit, graphic LCD provides easy to read resolution even in low-lit areas. A combination of dedicated and soft keys allows easy, intuitive operation in a choice of languages.
HI-98196 allows users to store up to 45,000 continuous or log-on demand samples with logging intervals from one second to three hours. Logged data can be later transferred to a PC with the HI-920015 micro USB cable and Hanna software.
Comprehensive GLP data includes data from the last five calibrations. The contextual Help Menu can be accessed to obtain on-screen information and assistance about each feature at the touch of a button.
pH specific features
- Up to three point calibration with five standard buffers and one custom buffer available
Dissolved Oxygen specific features
- Display units in % saturation of mg/L (ppm)
- Salinity compensation for concentration
- Pressure compensation for concentration
- Built-in barometer with user-selectable units (mmHg, inHg, atm, psi, kPa, mbar)
- Temperature compensation
- Automatic polarisation of probe at startup
- Ready to use HDPE pre-tensioned membrane caps are easy to replace
The HI-7698196 probe features a quick connect DIN connector to make attaching and removing the probe simple and easy.
Key features
- IP67 rated waterproof, rugged enclosure for meter, IP68 for probe
- Colour-coded, field replaceable sensors
- Auto sensor recognition
- Automatic logging of up to 45,000 samples
- Store measurement data at the press of a button
- On-screen context specific help is readily available at the press of a button
- PC connectivity via opto-isolated micro-USB with Hanna software
- Up to 360 hours of battery life, powered by (4) 1.5V batteries
- The HI-7698196 probe features a quick connect DIN connector for a water tight connection
IP68 - Electrode is dust-tight and protected against the effects of continuous immersion in water beyond 1m.
PC Interface - Download test results to a computer programmed with HANNA’s Windows® compatible software (HI-92000), directly from equipment via a USB port or a RS232 cable outlet.
Read More
| pH/mV Range | 0.00 to 14.00 pH/± 600.0 mV | |
| Resolution | 0.01 pH/ 0.1 mV | |
| Accuracy | ±0.02 pH/ ±0.5 mV | |
| Calibration | automatic up to three points with automatic recognition of five standard buffers (pH 4.01, 6.86, 7.01, 9.18, 10.01) or one custom buffer | |
| ORP Range | ±2000.0 mV | |
| ORP Resolution | 0.1 mV | |
| ORP Accuracy | ±1.0 mV | |
| ORP Calibration | automatic at one custom point (relative mV) | |
| Dissolved Oxygen Range | 0.0 to 500.0%, 0.00 to 50.00 ppm | |
| DO Resolution | 0.%; 0.01 ppm (mg/L) | |
| DO Accuracy | 0.0 to 300.0%; ±1.5% of reading or ±1.0% whichever is greater; 300.0 to 500.0%; ±3% of reading; 0.00 to 30.00 ppm (mg/L); ±1.5% of reading or ±0.10 ppm (mg/L). whichever is greater; 30.00 ppm (mg/L) to 50.00 ppm (mg/L); ±3% of reading | |
| DO Calibration | automatic one or two points at 0.100% or one custom point | |
| Atmospheric Pressure Range | 450 to 850 mm Hg; 17.72 to 33.46 in Hg; 600.0 to 1133.2 mbar; 8.702 to 16.436 psi; 0.5921 to 1.1184 atm; 60.00 to 113.32 kPa | |
| Atmospheric Pressure Resolution | 0.1 mm Hg; 0.01 in Hg; 0.1 mbar; 0.001 psi; 0.0001 atm; 0.01 kPa | |
| Atmospheric Pressure Accuracy | ±3mm Hg within ±15°C from the temperature during calibration | |
| Atmospheric Pressure Calibration | automatic at one custom point | |
| Temperature Range | -5.00 to 55.00°C | |
| Temperature Resolution | 0.01°C | |
| Temperature Accuracy | ±0.15°C | |
| Temperature Calibration | Automatic at one custom point | |
| Additional Specifications | ||
| Maximum probe immersion | Depth - 20 metres | |
| Temperature compensation | automatic from -5 to 55°C | |
| Logging Memory | 45,000 records (continuous logging or log-on demand of all parameters | |
| Logging Interval | one second to three hours | |
| PC Connectivity | via USB (with Hanna PC software) | |
| Environment | 0 to 50°C; RH 100% IP67 | |
| Battery Type/Life | 1.5V AA batteries (4)/approximately 360 hours of continuous use without backlight (50 hours with backlight) | |
| Dimensions/Weight | 185 x 93 x 35.2 mm/400g | |
| Ordering information: | HI-98196 is supplied with HI-7698196/4 multiparameter probe, HI-7698194-1 pH/ORP sensor, HI-7698194-2 DO sensor, HI-9828-20 quick calibration solution, HI-76981942 Probe maintenance kit, HI-76981943 Calibration beaker, HI-9298194 Hanna PC software, HI-920015 micro USB cable, 1.5V AA batteries (4), instruction manual, quick start guide, quality certificate, and rugged carrying case with custom insert. |
