HI-1131P General Purpose pH Electrode, BNC Connector + Pin

In Stock 2 Items available

Reference: HI-1131P

HI-1131P refillable, combination pH electrode with matching pin for general lab use.

6 months warranty

View

Full Description Specification Print Page

Quantity

Price

£192.50 (exc.VAT)

£231.00 (tax incl.)

Accessories

Reference

Price

Quantity

HI-7004L pH 4.01 Buffer Solution, 500 mL bottle

HI-7004L

£33.00 (exc. VAT)

HI-7007L pH 7.01 Buffer Solution, 500 mL bottle

HI-7007L

£32.00 (exc. VAT)

HI-7010L pH 10.01 Buffer Solution, 500 mL bottle

HI-7010L

£32.00 (exc. VAT)

HI-70300L pH Electrode Storage Solution, 500 mL

HI-70300L

£33.50 (exc. VAT)

HI-7061L Electrode Cleaning Solution - General Purpose, 500mL

HI-7061L

£33.50 (exc. VAT)

Full Description Specification

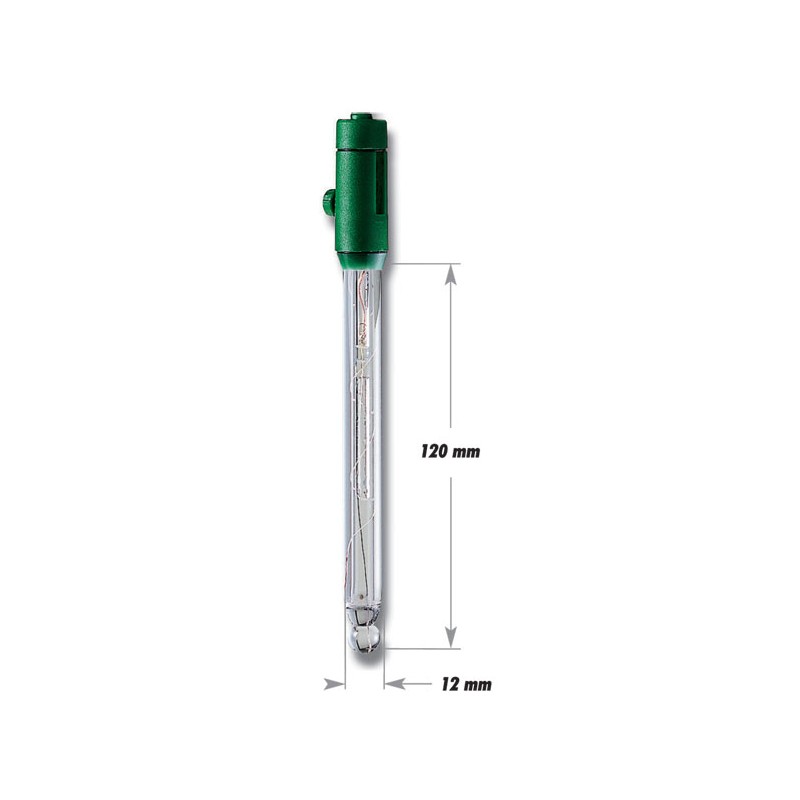

The HI-1131P is a glass bodied refillable single junction combination pH electrode suitable for general laboratory use.

Supplied fitted with

BNC + pin connector
1m cable

Tips for the most accurate measurements

Keep electrode hydrated

Ideally, pH electrodes should be kept in a storage solution when not in use. Placing the electrode in a small glass filled with storage solution is suitable. An option for pocket meters is to place a small piece of sponge into the meter’s cap and pour storage solution (HI-70300) into the cap to wet the sponge. Alternatively, purchase HI-740200 specialised electrode caps for storage. Pouring off any excess solution beforehand, the cap can then be placed on the meter.

Clean electrodes before use

Clean the junction of your electrodes once a day or at least once a week to prevent junction clogging and to maintain accuracy. Immerse the electrode in the proper cleaning solution for at least 15 to 20 minutes. Hanna offers a wide range of cleaning solutions for general purpose and specific applications.

Replace electrode once a year

If your electrode takes too long to stabilise a reading, or readings fluctuate wildly, it is most likely time to replace the electrode. The typical life span of any pH electrode is from 6 months to 1.5 years.

Sku	HI-1131B, HI-1131P, HI-1313, HI-1131Y
Description	Refillable combination pH electrode
Reference	Double, Ag/AgCl
Junction/flow rate	ceramic, single / 15-20µL/h
Electrolyte	KCl3.5M
Max Pressure	0.1 bar
Range	pH: 1 to 14
Recommended Operating Temp.	0 to 100°C
Glass Type	HT (High Temperature)
Tip/Shape	Spheric (dia: 9.5mm)
Temperature Sensor	DIN and BNC + RCA model only
Amplifier	DIN model only (HI-11313)
Body Material	glass
Cable	Coaxial; 1m
Recommended Use	Laboratory general purpose, beer
Connection	HI-1131B BNC HI-1131P BNC + pin* HI-11313 Quick connect DIN HI-1131Y BNC + RCA**
	For pH meters with CAL Check^TM system *Thermistor with RCA connector
