HI-1093B pH Electrode for use with NMR Tubes
HI-1093B
The HI-1093B is a glass bodied refillable single junction combination pH electrode with extended length and microbulb measuring tip suitable for NMR tubes and other small and narrow sampling vessels.
Ideal for use with NMR tubes
pH
6 months warranty
Full Description
Specification
Print Page
Accessories
Reference
Price
Quantity
Full Description
Specification

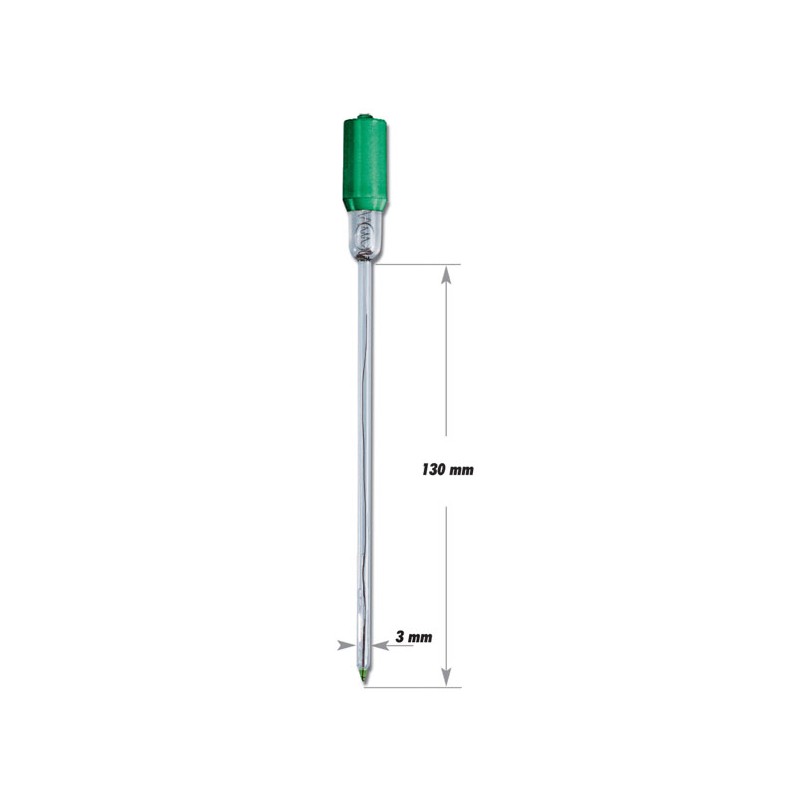

The HI-1093B is an extra-long/thin body glass electrode with refillable single junction, micro bulb and is suitable for NMR tubes and other small and narrow sampling vessels.
Supplied fitted with
- BNC connector
- 1m cable
Please note: due to the majority of the body of this electrode being only 3mm diameter it is extremely fragile; please handle with care.
| Sku | HI-1093B, HI-1093P |
| Description | Combination pH electrode with extended length and micro bulb |
| Reference | Single, Ag/AgCl |
| Junction/flow rate | open |
| Electrolyte | Viscolene |
| Max Pressure | 0.1 bar |
| Range | pH: 1 to 12 |
| Recommended Operating Temp. | 0 to 50°C |
| Glass Type | LT (Low Temperature) |
| Tip/Shape | Spheric (dia: 3mm) |
| Temperature Sensor | No |
| Amplifier | No |
| Body Material | glass-LT |
| Cable | Coaxial; 1m |
| Recommended Use | NMR Tubes |
| Connection | HI-1093B BNC HI-1093P BNC + pin* |
| *For pH meters with CAL CheckTM system |
