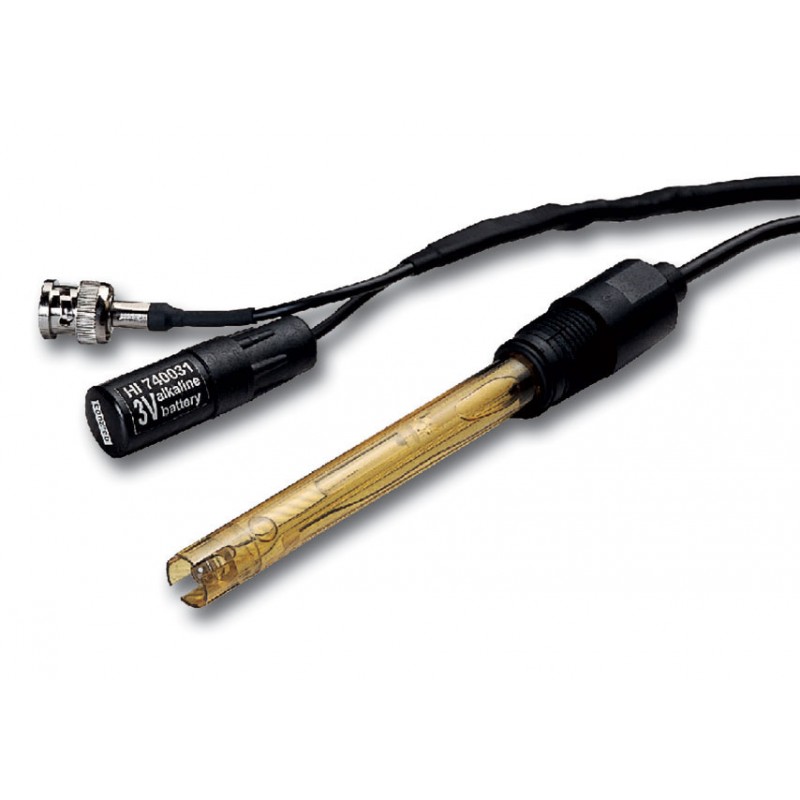

HI-6293005 AmpHel® ORP Electrode with Replaceable Battery
In Stock 2 Items available
HI-6293005
Hanna AmpHel® electrodes incorporate a miniaturized amplifier which resolves most of the problems associated with high impedance signals. The amplifier circuitry is located right on top of the electrode and is completely sealed. As a result, a strong, low impedance signal is emitted and ordinary connectors with long unshielded cables can be used.

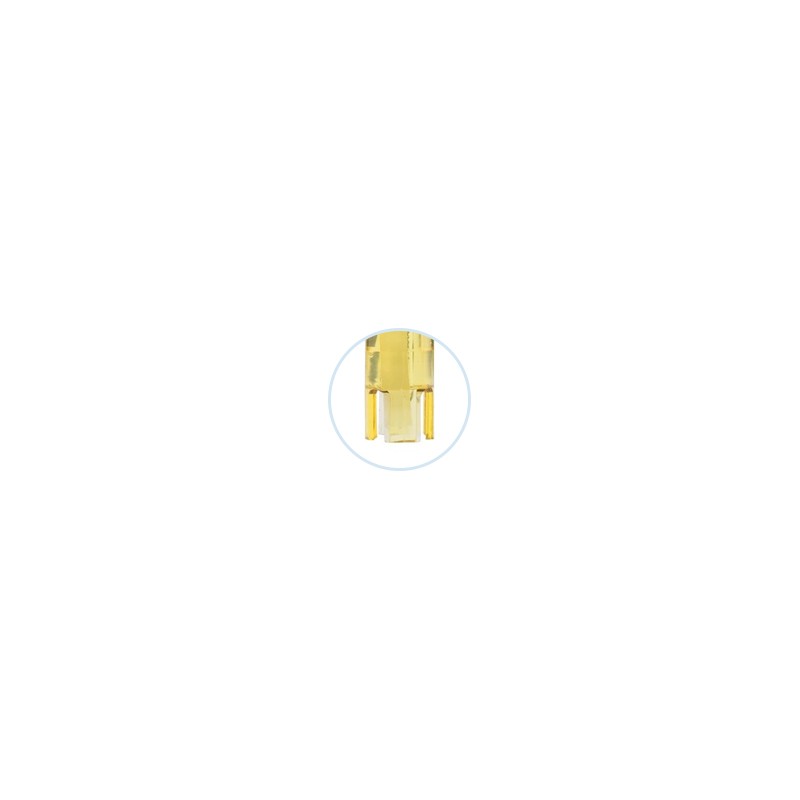

AmpHel ORP Electrode with Platinum Pin, cloth junction and 5 m cable
The HI 6293005 is an ORP electrode with platinum pin, cloth junction and 5m cable.
Due to the high resistance of the glass membrane, conventional electrodes require a high impedance measurement system. Inadequate insulation of the connectors and cables result in erroneous readings due to leakage or noise. HANNA AmpHel® electrodes incorporate a miniaturised amplifier which resolves most of the problems associated with high impedance signals. The amplifier circuitry is located right on top of the electrode and is completely sealed. As a result, a strong, low impedance signal is emitted and ordinary connectors with long unshielded cables can be used. This breakthrough technology provides a stable signal for industrial monitoring as well as a major saving in low noise coaxial cable costs. In some cases, the need for a transmitter is also eliminated, resulting in further cost reductions.
Key features
- Strong signal up to 75 metres
- Low noise coaxial cables are no longer required
- Measurements in unclean samples and high humidity conditions
- Models with external replaceable battery, for longer electrode life
- Glass sensor for specific applications
PEI electrode with Platinum pin, cloth junction and 5 m cable suitable for use in tanks or portable meters.
BNC Connection – BNC is one of the most commonly used connector types in pH meters and electrodes. Compatible with any meter or electrode that uses BNC connectors.
Read More
| Body Material | PEI (PolyEther-Imide) | |
| Junction | Cloth | |
| Electrolyte | Gel | |
| Glass Type | platinum | |
| Temperature | -5 to 80°C | |
| Max Pressure | 3 bar | |
| Connector | BNC | |
| Cable | 5 m |
