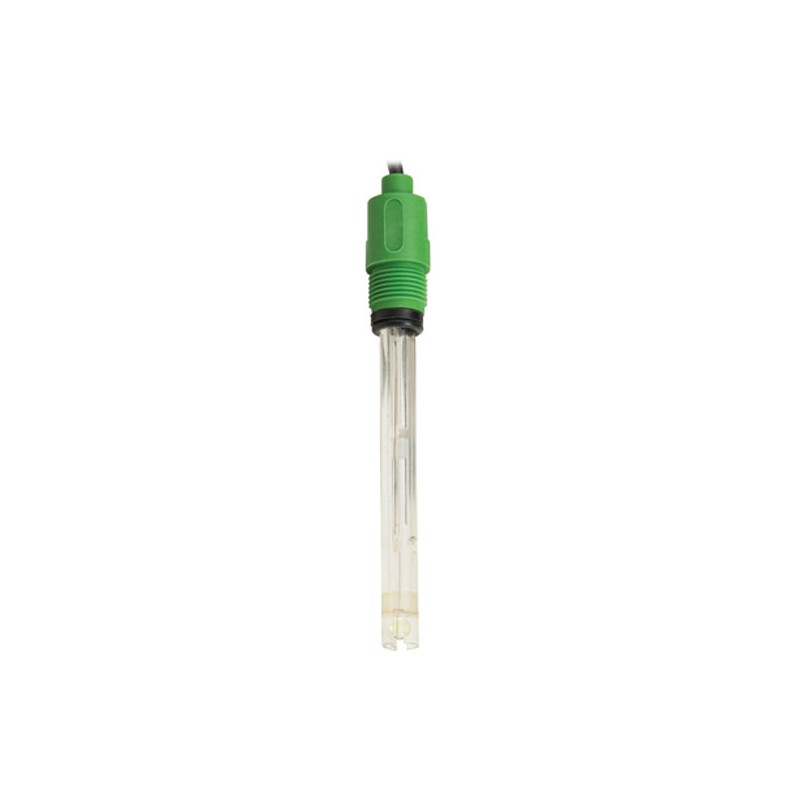

HI-6291005 AmpHel® Ultem PEI body combination pH electrode
HI-6291005
This amplified pH electrode is designed for industrial applications with features such as a cloth junction, PEI body and replaceable battery. With its durable design, you can count on this electrode to stand up to your process environment.
pH
Full Description
Specification
Print Page
Full Description
Specification
- AmpHel pH electrodes with replaceable battery
- Ideal for measurements in unclean samples and high humidity conditions
- Built for everyday, demanding use in industrial applications, such as swimming pools and spas

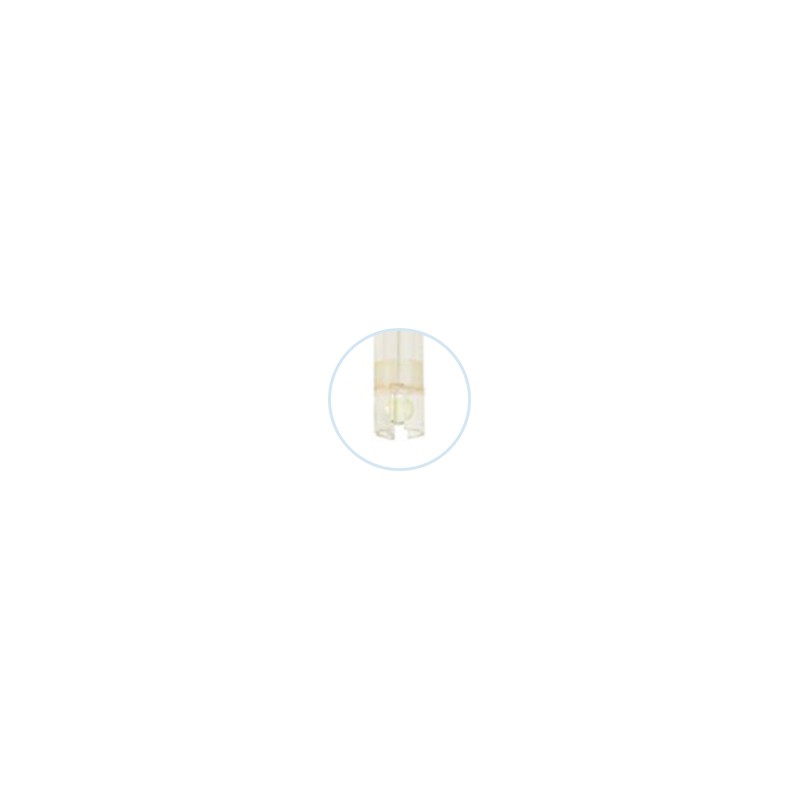

- Glass electrode bulb with PEI protective body.
AmpHel® Ultem body combination electrode, replaceable battery, gel filled.
Key features of the electrode
- Amplified pH electrode - Provides a stable signal for industrial monitoring as well as a major saving in low noise coaxial cable costs.
- PEI body - PEI bodied electrodes are rugged and suitable for non-critical applications that require a very good combination of chemical, mechanical, and thermal resistance.
- Cloth junction - Clear the junction by simply extracting 3mm of the junction from the electrode to expose a new portion, resulting in a renewed junction.
- BNC connector - Allows for quick and easy connection to any pH/ORP meter or transmitter.
- General purpose glass formulation - General purpose glass provides the best response over the entire pH range and can be used for a wide range of applications.
- AmpHel® replaceable battery - No longer necessary to throw away an electrode when the battery is exhausted for longer electrode life .
Read More
| Junction Type/Flow Rate | Cloth | |
| Type of Electrolyte | Gel | |
| Body material | PEI | |
| Glass type | GP (-5 to 70°C) | |
| Matching pin | No | |
| Max. Pressure | 3 bar (43.5 psi) | |
| Temperature Sensor | No | |
| Cable | 5m | |
| Connector Type | BNC | |
| Battery Type / Life | Replaceable | |
| Amplifier | Yes |
