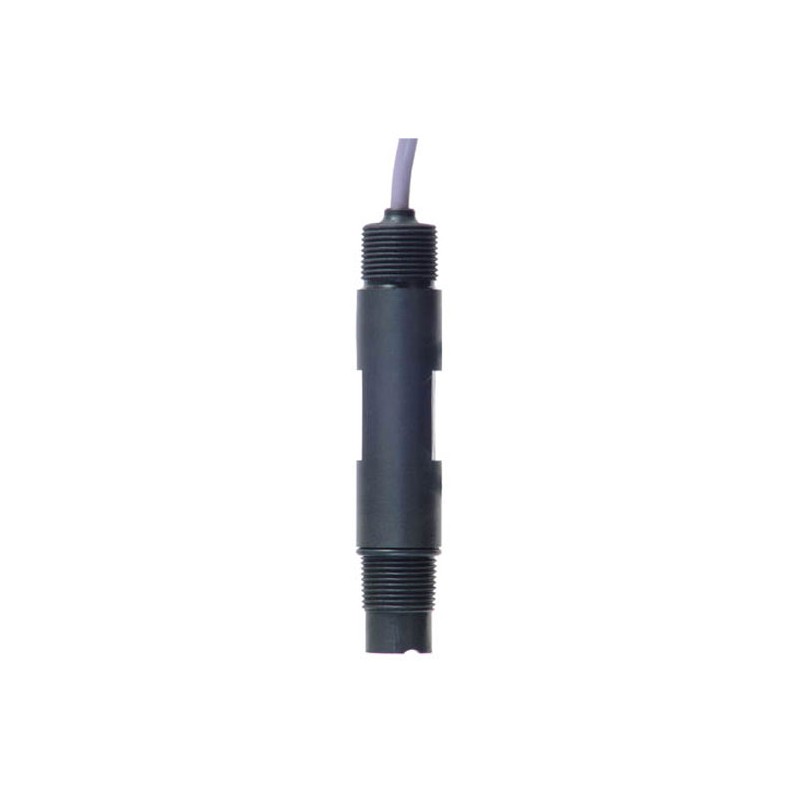

HI-6200405 AmpHel® Flat-tip Platinum-Type ORP Electrode - General Purpose
In Stock 1 Item available
HI-6200405
The amplified ORP electrode is designed for industrial applications with features such as a PTFE junction, platinum sensor, and PVDF body. With its durable design, you can count on this electrode to stand up to your process environment.
General purpose ORP process electrode. Amplified with matching pin, 5m cable and BNC connector.
- Flat-tip ORP electrode.
- Designed with ¾” external thread on both ends for easy installation.
- Built for everyday, demanding use in industrial applications.
Flat tip ORP electrode
Virtually eliminates deposits that can foul the electrode, significantly reducing necessary maintenance.
BNC connector
Allows for quick and easy connection to any pH/ORP meter or transmitter.
Platinum sensor
Provides the best response over a wide range of applications.
PTFE junction
The electrode has a unique clog resistant junction that enhances both probe life and accuracy.
PVDF body
PVDF offers characterized by high thermal stability and excellent chemical resistance.
Double junction technology with gel polymer filling
Ensure long electrode life and reliability in harsh environments.
Read More
| Measurement Range | ORP: 2000 mV | |
| Junction Type/Flow Rate | Double, PTFE | |
| Type of Electrolyte | Polymer | |
| Body Material | PVDF | |
| Glass Type | (-5 to 100°C) | |
| Tip / Shape | Flat, platinum | |
| Matching Pin | Yes | |
| Max. Pressure | 6 bar (87 psi) | |
| Temperature Sensor | No | |
| Cable | 5m | |
| Connector Type | BNC | |
| Amplifier | No |
