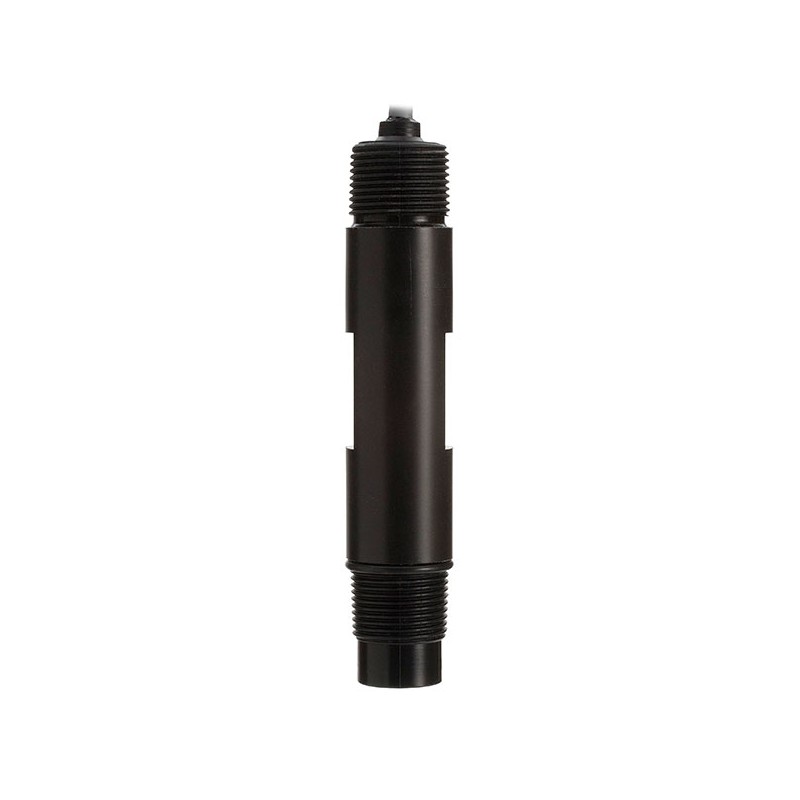

HI-6101605 Low temperature process pH electrode
HI-6101605
The amplified pH electrode is designed for low-temperature industrial applications with features such as a PTFE junction, Pt100 temperature sensor, and PVDF body.
Low temperature process pH electrode. Amplified with matching pin, PT100 temperature sensor, 5m cable and BNC connector.
With its durable design, you can count on this electrode to stand up to your process environment.
- Flat-tip pH electrode.
- Low temperature glass for fast stabilisation and more accurate results at lower temperatures.
- Built for everyday, demanding use in industrial applications.
Flat tipped pH electrode
Virtually eliminates deposits that can foul the electrode, significantly reducing necessary maintenance.
BNC connector
Allows for quick and easy connection to any pH meter or transmitter.
PTFE junction
The electrode has a unique clog resistant junction that enhances both probe life and accuracy.
Low temperature glass formulation
Low temperature glass for fast stabilization and more accurate results at lower temperatures.
PVDF body
PVDF offers characterized by high thermal stability and excellent chemical resistance.
Built-in Pt100 temperature sensor
Ensures fast, accurately compensated readings even during sudden temperature fluctuations.
Read More
| Measurement Range | pH 0-12 | |
| Junction Type/Flow Rate | Double, PTFE | |
| Type of Electrolyte | Polymer | |
| Body Material | PVDF | |
| Glass Type | LT -10 to 80°C | |
| Tip / Shape | Flat | |
| Matching Pin | Yes | |
| Max. Pressure | 6 bar (87 psi) | |
| Temperature Sensor | Yes | |
| Cable | 5m | |
| Connector Type | BNC | |
| Amplifier | No | |
| Temperature Sensor Type | pt100 |
