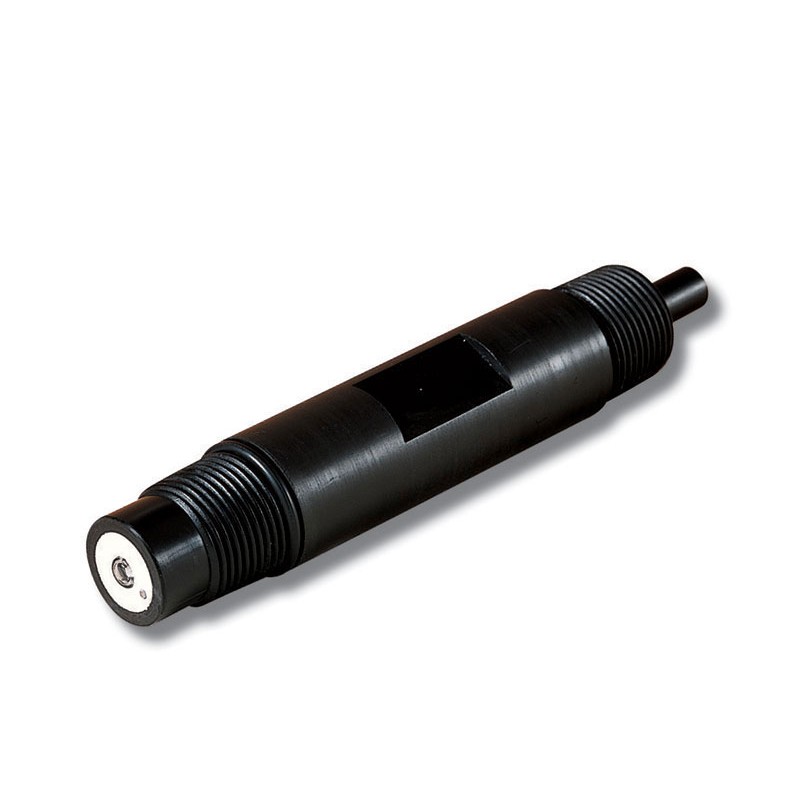

HI-6100805 High temperature process pH electrode
HI-6100805
The amplified pH electrode is designed for high temperature industrial applications with features such as a PTFE junction, Pt100 temperature sensor, and PVDF body.
High temperature process pH electrode. Amplified with matching pin, 5m cable and BNC connector.
With its durable design, you can count on this electrode to stand up to your process environment.
- Flat-tip pH electrode.
- High temperature glass can stand up to the effects of elevated temperatures leading to longer probe life.
- Built for everyday, demanding use in industrial applications.
Flat tipped pH electrode
Virtually eliminates deposits that can foul the electrode, significantly reducing necessary maintenance.
BNC connector
Allows for quick and easy connection to any pH/ORP meter or transmitter.
PTFE junction
The electrode has a unique clog resistant junction that enhances both probe life and accuracy.
High temperature glass formulation
High temperature glass can stand up to the effects of elevated temperatures leading to longer probe life.
PVDF body
PVDF offers characterized by high thermal stability and excellent chemical resistance.
Double junction technology with gel polymer filling
Ensure long electrode life and reliability in harsh environments.
Read More
| Measurement Range | pH 0-14 | |
| Junction Type/Flow Rate | Double, PTFE | |
| Type of Electrolyte | Polymer | |
| Body Material | PVDF | |
| Glass Type | HT 0 to 100°C | |
| Tip / Shape | Flat | |
| Matching Pin | Yes | |
| Max. Pressure | 6 bar (87 psi) | |
| Temperature Sensor | No | |
| Cable | 5m | |
| Connector Type | BNC | |
| Amplifier | No |
