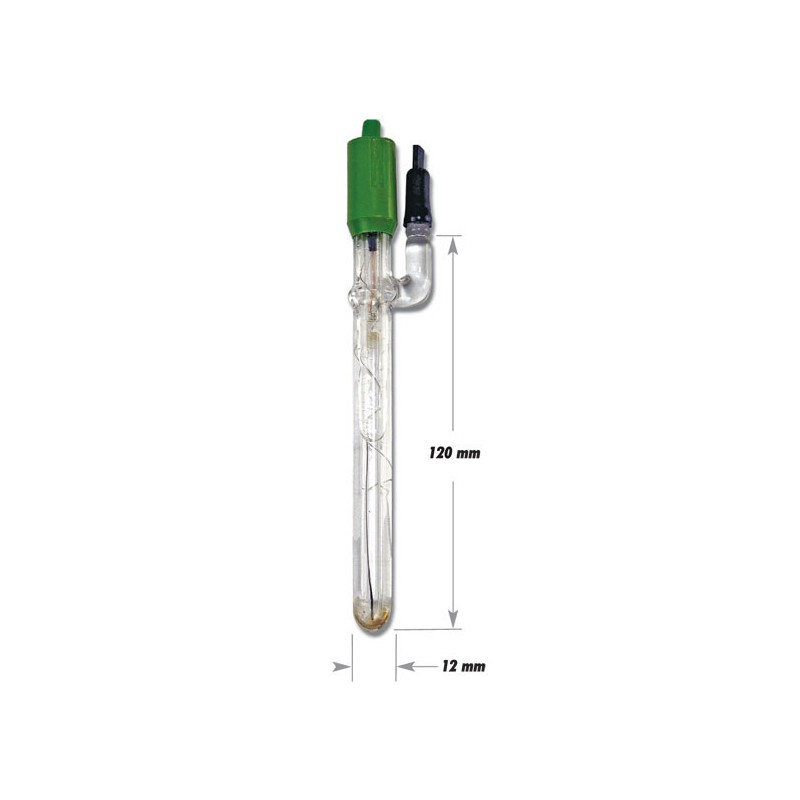

HI-5414 Reference Electrode
In Stock 1 Item available
HI-5414
Reference electrode with ceramic junction, glass body and 1 m (3.3') cable. 4mm banana connector.
The HI-5414 is a reference electrode for measurements with remote filling.
High pressure or high concentration of contaminants
Because of the special electrode recharge system of the HI-5314 and HI-5414, it is possible to connect an outside container. This will increase the amount of electrolyte of the reference half cell and thus, the pressure inside the electrode. By so doing, the junction has the ability to work in high pressure environments without the danger of implosion.
All electrodes and probes have 6 months warranty.
Read More
Reference | Single, Hg/Hg2Cl2 | |
Junction | Ceramic, double | |
Connector | 4 mm Banana Connector | |
Electrolyte | KCl 3.5M | |
Max Pressure | 3 bar with back pressure | |
Range | -5 to 60°C (23 to 140°F) | |
Body Material | Glass | |
Cable | 1 m (3.3') | |
Recommended Use | Measurements with remote filling |
