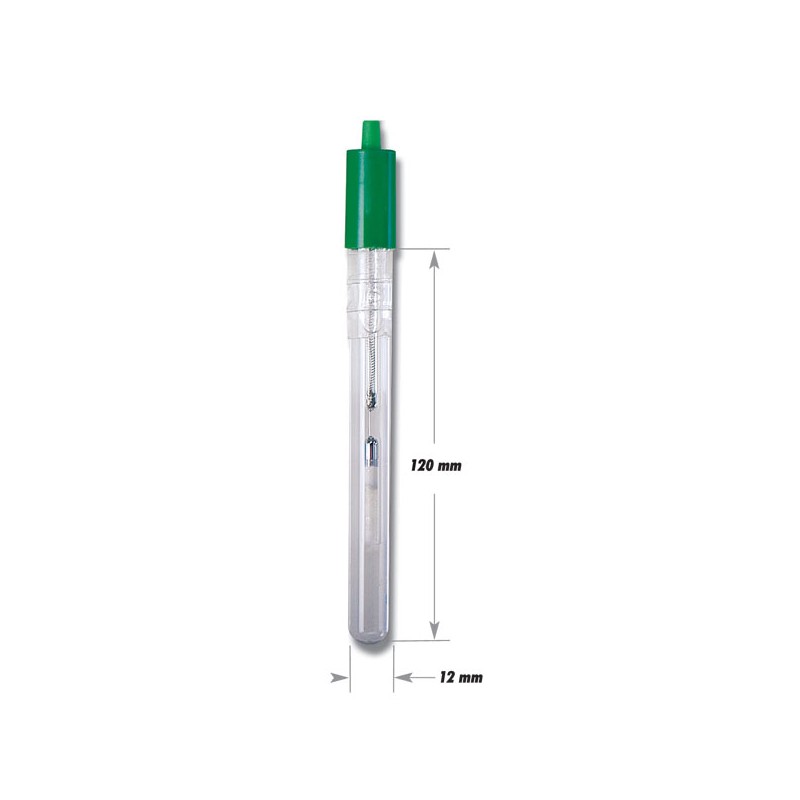

HI-5412 Glass body refill calomel reference electrode
HI-5412
Reference electrode with PTFE (PolyTetraFluoro-Ethylene) sleeve and glass body. Suitable for general purpose use and titrations.
6 months warranty
1m cable
4mm banana connector
Full Description
Specification
Print Page
Full Description
Specification
The HI-5312 is a glass body, refillable, double junction, half-cell reference electrode with a 4 mm banana connector.
The electrode has a PTFE sleeve junction in the outer reference cell and is made for use in temperatures ranging from -5 to 80°C.
This design consideration is made for measurements in samples with suspended solids, and can also be used in a variety of titrations.
Read More
| Reference | Double, Ag/AgCl | |
| Junction | PTFE (PolyTetraFluoro-Ethylene) sleeve | |
| Connector | 4 mm Banana Connector | |
| Electrolyte | KCl 3.5M | |
| Max Pressure | 0.1 bar | |
| Range | -5 to 100°C (23 to 212°F) | |
| Body Material | Glass | |
| Cable | 1 m (3.3') | |
| Recommended Use | Titrations, samples with suspended solids |
