Hanna HI-7698194/20 pH/ORP/EC/DO probe (no protective sleeve, no sensors) for HI-98194
HI-7698194/20
Hanna HI-7698194/20 pH/ORP/EC/DO probe (no protective sleeve, no sensors) for HI-98194
HI-7698194/20

HI-7698194/20

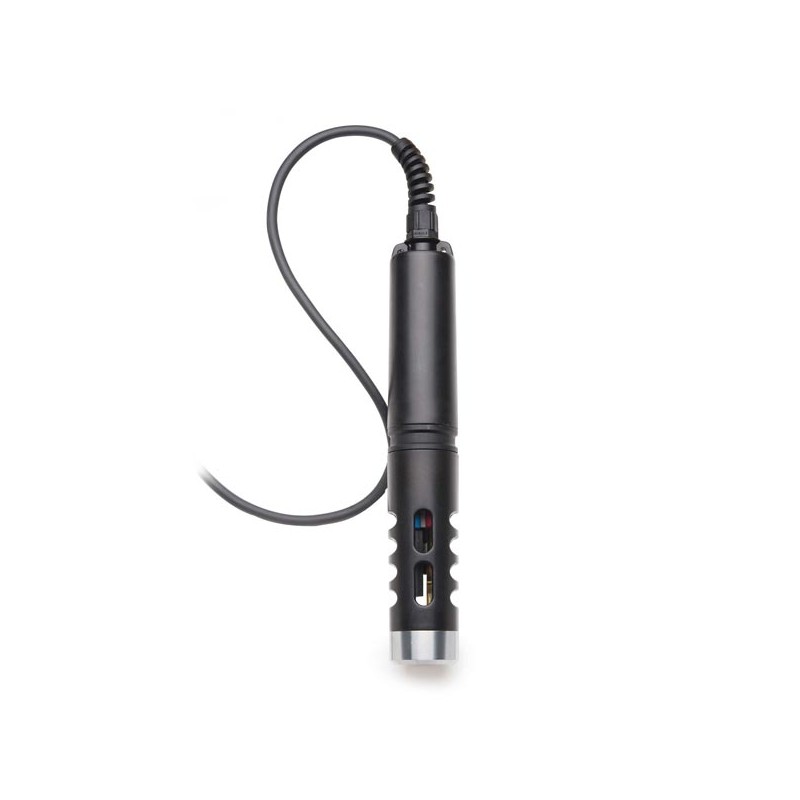

HI-7698194/20 pH/ORP/EC/DO probe (no protective sleeve, no sensors) for HI-98194.

20 metre cable

£1,577.60 (exc.VAT)
£1,893.12 (tax incl.)
Order now for 2 weeks delivery
Full Description Specification

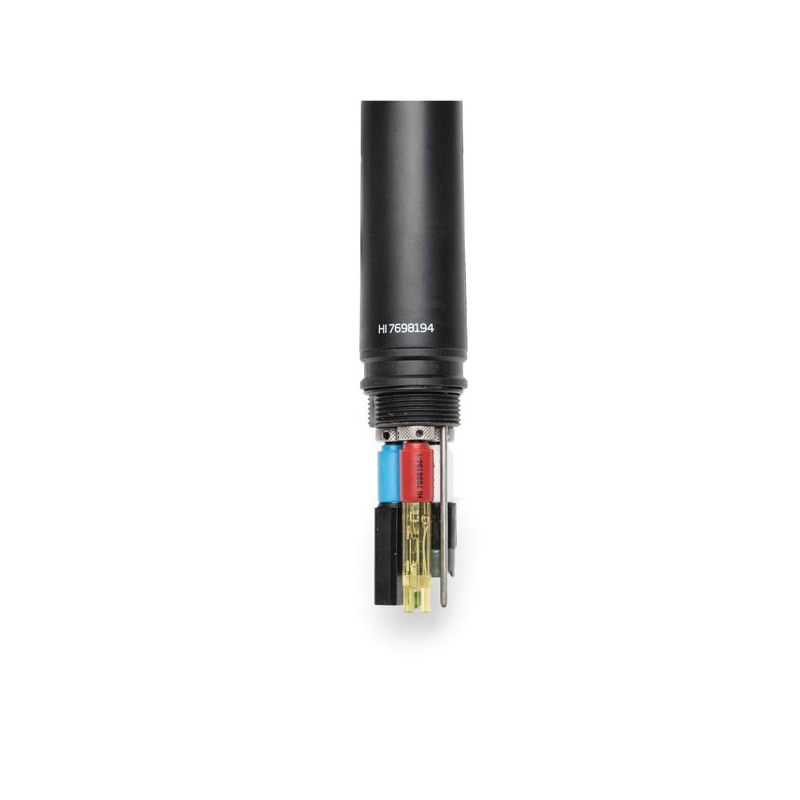

The probe features a quick connect that makes a waterproof connection with the meter. Sensors are automatically recognised by the probe and meter when connected. Any ports not used on the probe will not have the parameter displayed on the meter. Sensor replacement is quick and easy with field replaceable, screw type connectors that are colour coded for easy sensor identification. The probe features a multistrand-multiconductor shielded cable with 4m, 10m, 20m and 40m lengths available. It's rugged waterproof design makes it ideal for field use.

Multi-function Sensor

  • Quick Sensor replacement

Sensor replacement is quick and easy with field replaceable, screw type, connectors which are colour-coded for easy identification. These meters automatically recognise sensors.

Sensors available separately:

The HI-7698194-0 is a replaceable combination pH sensor for use with Hanna’s family of multiparameter portable meters and probes. The sensor body is constructed of durable PEI material and contains a double ceramic junction design. The HI-7698194-0 contains a glass pH sensing tip combined with an Ag/AgCl reference electrode in gel electrolyte. Each module is colour coded for easy installation and integration with the probe.

The HI-7698194-1 is a replaceable combination pH/ORP sensor for use with Hanna’s family of multiparameter portable meters and probes. The sensor body is constructed of durable PEI material and contains a double ceramic junction design. The HI7698194-1 contains a glass pH sensing tip with a platinum ORP sensing pin. Each module is colour coded for easy installation and integration with the probe.

The HI-7698194-2 is a replaceable galvanic dissolved oxygen membrane sensor for use with Hanna’s family of multiparameter portable meters and probes. The sensor body is constructed of durable ABS material and contains an easily replaceable membrane cap design. The membranes are constructed of HDPE and each cap screws onto the sensor with the twist of a finger. The HI-7698194-2 sensor contains a silver cathode and zinc anode. The sensor module is colour-coded for easy installation and integration with the probe.

The HI-7698194-3 is a replaceable 4-ring electrode conductivity sensor for use with Hanna’s family of multiparameter portable meters and probes. The sensor body is constructed of durable ABS material and contains AISI 316 stainless steel electrodes that are not subject to polarisation or surface coating effects. Each module is colour coded for easy installation and integration with the probe.

Read More

Sensor inputsthree (pH or pH/ORP, DO, EC)
Sample EnvironmentFresh, brackish, seawater
Waterproof ProtectionIP68
Operating temperature-5 to 55°C
Storage Temperature-20 to 70°C
Maximum Depth20 metres
Dimensions without cable342mm; 46mm diameter
Weight (without sensors)570g
Cable specification20 metre Multistrand-multiconductor shielded cable with internal strength member rated for 68kg intermittent use
Wetted materials:
BodyABS
ThreadsNylon
ShieldABS/316SS
Temperature probe316 SS
O-ringsEPDM
