HI-3211T Glass Body Combination ORP Electrode with Platinum sensor
In Stock 1 Item available
HI-3211T

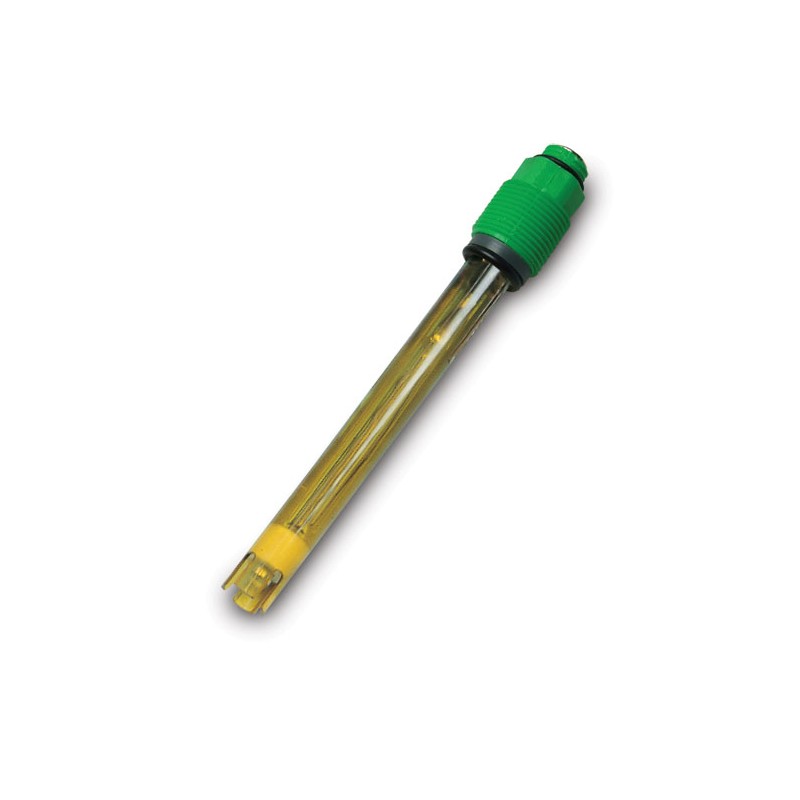

Combination glass-body ORP electrode with a platinum sensor plus a screw cap connector and PG 13.5 thread. Built for everyday demanding use in industrial applications, such as swimming pools and spas.
This combination glass-body ORP electrode is designed for industrial applications with features such as platinum sensor, a cloth junction, and T-type connection. With its durable design, you can count on this electrode to stand up to your process environment.
Key features
- Combination electrode - Single combined electrode that has both sensing and reference components for added convenience
- Glass body - Glass body electrodes are easier to clean, can withstand high pressure and high temperature applications, and offers high resistance to aggressive chemicals
- Platinum sensor - Provides the best response over a wide range of applications
- T-type connector - Designed by Hanna to take advantage of both PG 13.5 thread and screw cap. The PG 13.5 thread ensures proper in-line installation while the screw cap allows for maximum versatility making it possible to connect a cable of different lengths
- Cloth junction - Clear the junction by simply extracting 3mm of the junction from the electrode to expose a new portion, resulting in a renewed junction
- Double junction technology with gel polymer filling - Ensure long electrode life and reliability in harsh environments
Read More
| Junction type and flow rate | Double, cloth | |
| Electrolyte | Gel | |
| Tip/Shape | Platinium | |
| Body material | Glass | |
| Temperature | -5 to 80°C | |
| Max Pressure | 3 bar (43.5 psi) | |
| Connector | T-type | |
| Overall length | 140mm | |
| Amplifier | No | |
| Probe mounting | PG 13.5 thread |
