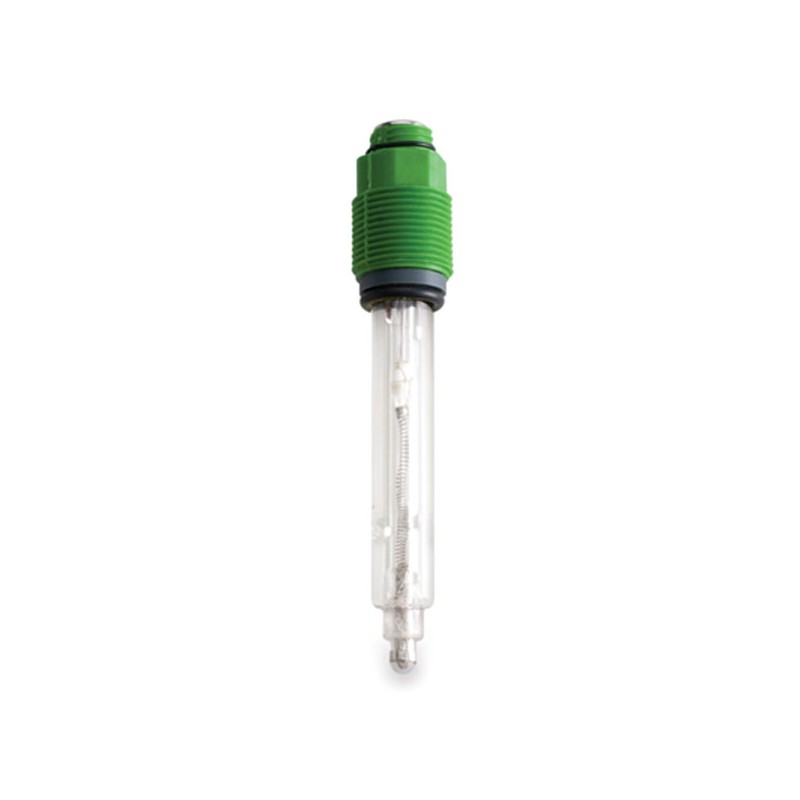

HI-3190T Glass Body ORP Electrode
HI-3190T
This combination glass-body ORP electrode is designed for industrial applications with features such as platinum sensor, a PTFE junction, and T-type connection. With its durable design, you can count on this electrode to stand up to your process environment.
The HI-3190T is a glass body ORP electrode with platinum sensor.
This electrode is suitable for use with process instrumentation
- Combination glass-body ORP electrode
- Screw cap connector and PG 13.5 thread
- Built for everyday, demanding use in industrial applications
The HI-3190T is a glass body ORP electrode with platinum sensor.
This electrode is suitable for use with process instrumentation.
Combination electrode
Single combined electrode that has both sensing and reference components for added convenience.
Glass body
Glass body electrodes are easier to clean, can withstand high pressure and high temperature applications, and offers high resistance to aggressive chemicals.
Platinum sensor
Provides the best response over a wide range of applications.
T-type connector
Designed by Hanna to take advantage of both PG 13.5 thread and screw cap. The PG 13.5 thread ensures proper in-line installation while the screw cap allows for maximum versatility making it possible to connect a cable of different lengths.
PTFE junction
The electrode has a unique clog resistant junction that enhances both probe life and accuracy.
Double junction technology with gel polymer filling
Ensure long electrode life and reliability in harsh environments.
All electrodes and probes have 6 months warranty.
Read More
| Junction Type/Flow Rate | Double, PTFE | |
| Type of Electrolyte | Polymer | |
| Body Material | Glass | |
| Glass Type | -15 to 100°C | |
| Tip / Shape | Platinum | |
| Matching Pin | No | |
| Max. Pressure | 6 bar (87 psi) | |
| Overall Length | 140mm | |
| Temperature Sensor | No | |
| Connector Type | T-type | |
| Amplifier | No | |
| Probe Mounting | PG 13.5 Thread |
