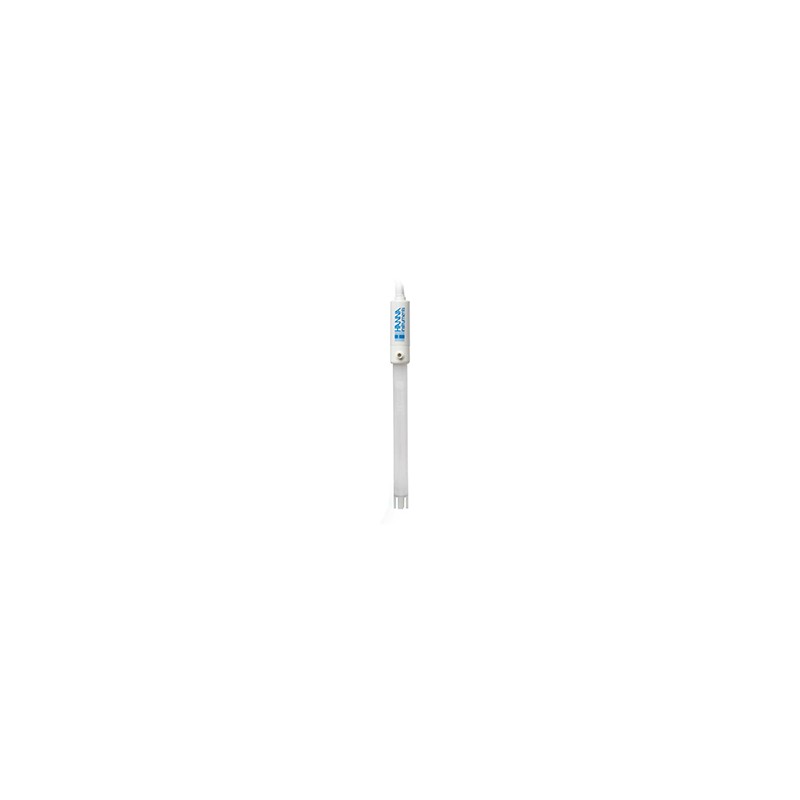

FC1013 Foodcare pH and temperature electrode for milk
In Stock 1 Item available
FC1013
The specialised electrode offers numerous features that improve pH testing for milk producers. An integrated temperature sensor allows for temperature compensated pH measurements without the need for a separate temperature probe.
An integral part of any pH electrode is the reference junction. The reference junction is a part of the electrode that allows for the flow of ions located in the reference cell into the sample being tested. It is vital that this flow occurs in order to complete an electrical circuit, which ultimately determines the pH value. Any clogging of the junction will prevent completion of the circuit, resulting in readings that are erratic or constantly drifting.
The FC1013 probe utilises a secondary reference chamber with ceramic outer junction allowing aqueous silver free electrolyte to flow slowly through providing accurate readings for aqueous samples.
The durable PVDF body of the FC1013 ensures pH measurements can be safely taken on the dairy farm or production floor. The components of the electrode are also able to withstand a wider range of temperatures to allow for accuracy during stages such as pasteurisation, which requires heating to temperatures near 72°C (161°F).
Key features of the FC1013 Foodcare pH and temperature electrode for milk
- PVDF plastic body
- Spherical glass tip
- Refillable with silver free electrolyte
- Open junction design prevents clogging
- General purpose pH sensing glass for a wide range of temperatures
- Built-in temperature sensor for compensated measurements
- For use with the HI-98162 or HI-99162 Foodcare meters
Read More
| Description | pre-amplified pH/temperature probe | |
| Reference | double, Ag/AgCl | |
| Junction | ceramic, single | |
| Electrolyte | KCI 3.5M | |
| Max Pressure | 0.1 bar | |
| Range | pH: 0 to 13 | |
| Recommended Operating Temperature | 0 to 80°C - GP | |
| Tip/Shape | spheric (dia: 7.5mm) | |
| Temperature Sensor | yes | |
| Amplifier | yes | |
| Body Material | PVDF | |
| Cable | coaxial; 1m | |
| Connection | Quick Connect DIN |
