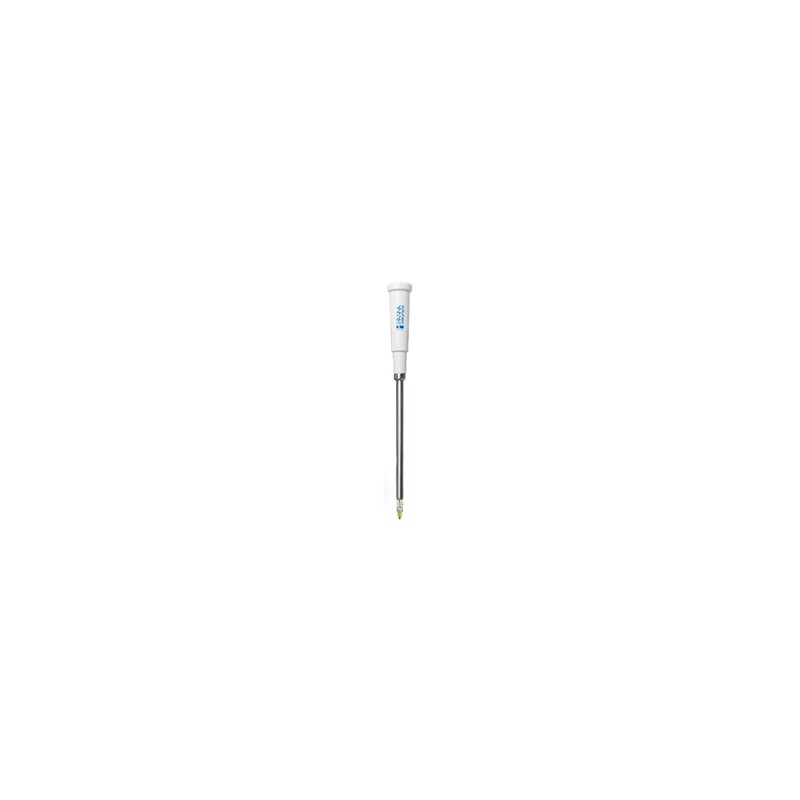

FC2423 Foodcare pH and temperature electrode for cheese
In Stock 2 Items available
FC2423
The FC2423 used with the HI-98165 & HI-99165 is designed specifically for measuring pH in cheese.
FC2423 Foodcare pH and temperature electrode for cheese
Cheese products can provide challenges for the person that needs to measure pH. Cheese products tend to be solid to semi-solids. Both types of samples will coat the sensitive glass membrane surface and/or clog the reference junction.
From a conic tip shape in a durable 5 mm diameter stainless steel body for easy penetration into cheese without leaving a large hole to an open junction that resist clogging; the FC2423 is an ideal general-purpose pH electrode for cheese. The FC2423 connects to the HI-98165 & HI-99165 with a quick-connect, waterproof DIN connector, allowing for a secure, non-threaded attachment.
The robust stainless steel sheath paired with the conical sensing tip allows for penetration in cheese at various points throughout the production process. An integrated temperature sensor also ensures that all pH measurements are compensated for temperature without the need for a separate temperature probe.
- Stainless steel body
- Conic Glass Tip
- Built-In Temperature Sensor
- Low temperature glass
- For use with the HI-98165 & HI-99165 Foodcare meters
Read More
| Body Material | AISI 316 stainless steel | |
| Reference | single | |
| Junction / Flow Rate | open | |
| Electrolyte | viscolene | |
| Range | pH: 0 to 12 | |
| Max Pressure | 0.1 bar | |
| Tip Shape | conic | |
| Diameter | 8 mm | |
| Body Length / Overall Length | 150 mm | |
| Recommended Operating Temperature | 0 to 50°C | |
| Temperature Sensor | yes | |
| Amplifier | yes | |
| Cable | coaxial; 1 m (3.3’) | |
| Connection | DIN | |
| Applications | dairy | |
| Warranty | 6 months |
