FC2022 HALO PVDF Body pH Foodcare Electrode with Bluetooth®
FC2022

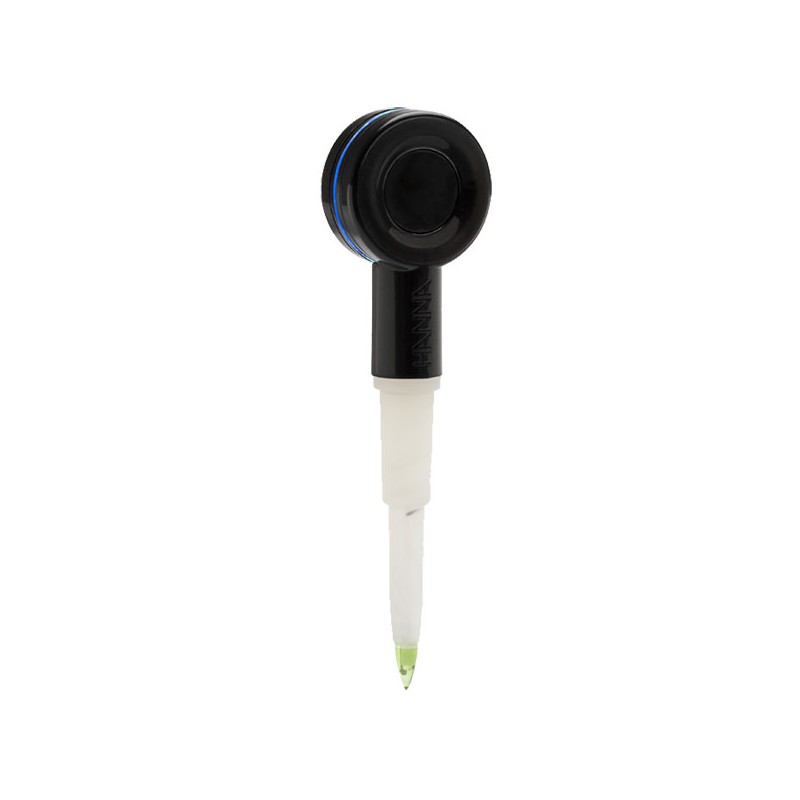

The FC2022 HALO® is a pH and temperature electrode which incorporates a Bluetooth transmitter to wirelessly connect to an iPad or the Hanna Edge-Blu pH tablet meter.
The FC2022 is a pH electrode that incorporates Bluetooth Smart (Bluetooth 4.0) wireless technology with an application specific design. The electrode’s features make it ideal for measuring food related products such as dough, dairy, minced meats and semi-solids. Features include: low temperature (LT) glass, conical bulb, food grade PVDF body, and an open junction with viscolene gel electrolyte.
- No need for a pH meter
- Free to use Hanna Lap App for iPad
- Flexible, accurate and easy to use
- Battery operated
Hanna Lab App
The first app that turns an iPad® and mobile phone into a full-featured pH meter!

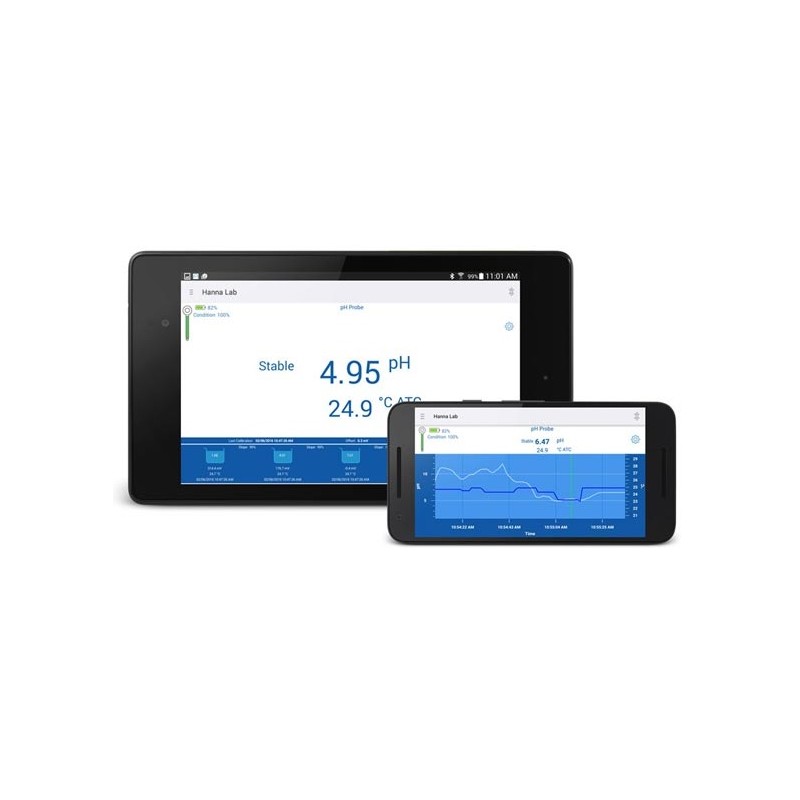

The Hanna Lab App turns an iPad® or mobile phone into a full-featured pH meter when used with the Hanna HALO® pH electrode with Bluetooth® smart technology. Functions include calibration, measurement, data logging, graphing and data sharing. Measurement and logging of pH and temperature at one second intervals start as soon as the probe is connected. Measurements can be displayed alone on the display, with tabulated data or as a graph. The graph can be planned and zoomed with the iPad's pinch-to-zoom technology for enhanced viewing.
Connecting a HALO® probe to the Hanna Lab App is simple. Tap the Bluetooth® icon in the top-right corner to view all available HALO® probes then press the button on your HALO® probe. The blue halo on the probe will start blinking indicating that it is in discovery mode. Select the newly discovered HALO® probe from the list of available probes. If a previously associated probe is visible when the app is opened, it will connect to that probe automatically.
- Connects to HALO® via Bluetooth® 4.0
- Up to five-point pH calibration with seven standard pH buffers available
- Calibration reminder
- pH and temperature updated every second
- Basic and full GLP
- Fluid, dynamic graphing
- Measurement alarms Alerts you if the measurement threshold is exceeded
- One button sample tagging
- Data-logging with custom annotations
- Share data via email in CSV format
- Help and tutorials
Go to Google Playstore or iOS to download the FREE Hanna Lab App
Read More
| Reference | single, Ag/AgCl | |
| Junction | open | |
| Electrolyte | viscolene | |
| Range | 0 to 12 pH | |
| Tip Shape | conic (6 x 10mm) | |
| Diameter | 6mm | |
| Overall Length | 134mm | |
| Environment | 0.0 to 50.0°C, electronic module is not waterproof | |
| Recommended Operating Temperature | 0.0 to 60.0°C | |
| Temperature Sensor | yes | |
| Body Material | PVDF | |
| Connection | Bluetooth® Smart (Bluetooth 4.0), 10m range | |
| Battery Type/Life | CR2032 3V lithium ion/approximately 500 hours | |
| Hanna Lab App Specifications | ||
| Range | -2.000 to 16.000 pH; ±800mV; -20.0 to 120.0°C | |
| Accuracy (@25°C) | ±0.005 pH; ±0.3 mV; ±0.5°C | |
| Calibration Points | up to five-point calibration with seven standard buffers (1.68, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45 pH) | |
| Temperature Compensation | automatic from -5.0 to 100.0°C | |
| Compatibility/System Requirements | Hanna Lab App works with iPad 3rd generation or newer (including iPad mini) with Bluetooth® 4.0 technology and iOS 7.1 or newer |
