HI-201 Submersible ORP Electrode with PVC body & BNC
HI-201
Submersible ORP electrode with PVC body & BNC
ORP
Full Description
Specification
Print Page
Accessories
Reference
Price
Quantity
Full Description
Specification

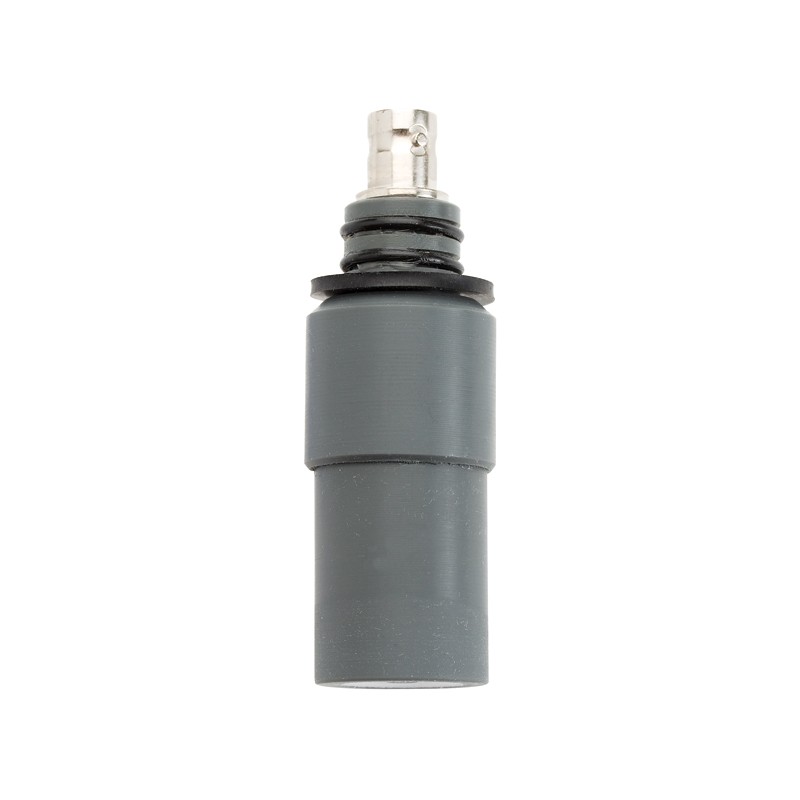

The HI-201 is a platinum flat tipped submersible ORP electrode with PVC body.
This electrode has a 3m cable and BNC connector.
BNC Connection – BNC is one of the most commonly used connector types in pH meters and electrodes. Compatible with any meter or electrode that uses BNC connectors.
| Reference | double, Ag/AgCl | |
| Junction/Flow Rate | PTFE | |
| Electrolyte | polymer | |
| Max Pressure | 6 bar (25ºC) | |
| Range | ±2000 | |
| Recommended Operating Temp. | 20 to 40°C (68 to 104°F) | |
| Tip/Shape | flat, platinum | |
| Body Material | PVC | |
| Connector | BNC female | |
| Connection Cable | HI 101/3 adapter with 3 m (9.9’) cable | |
| Recommended Use | Immersion |
