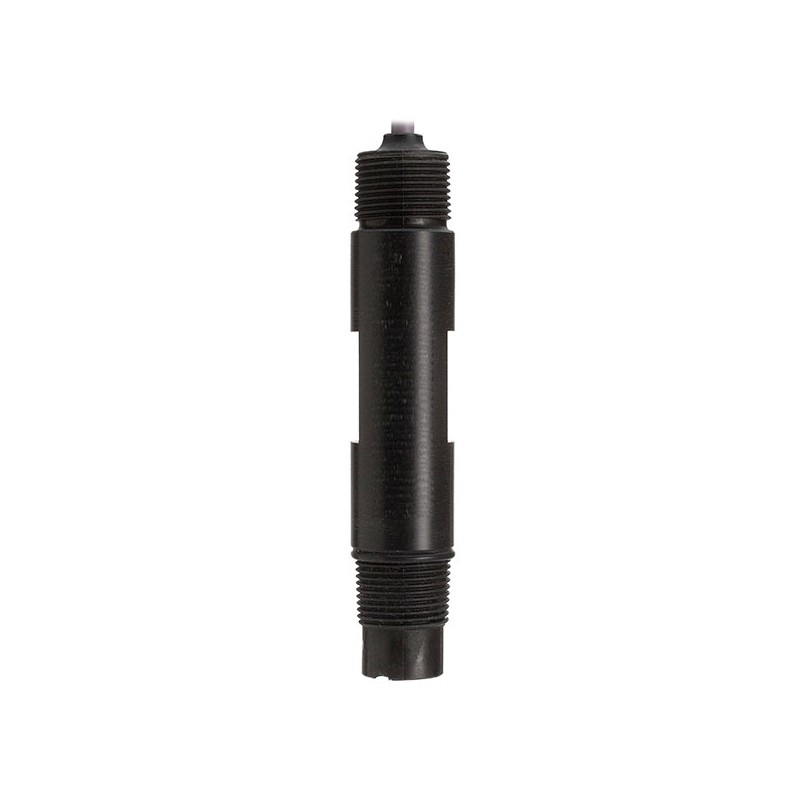

HI-2004-1015 ORP Electrode with PTFE Junction, Pt Sensor, BNC, 15m Cable
HI-2004-1015
Flat tip ORP Electrode with PTFE Junction, Platinium sensor, BNC connector with 15 m cable for amplified electrodes.
ORP Electrode with PTFE Junction, Pt Sensor, BNC, 15m Cable
Flat tip ORP electrode
Virtually eliminates deposits that can foul the electrode, significantly reducing necessary maintenance.
BNC connector
Allows for quick and easy connection to any pH/ORP meter or transmitter.
Platinum sensor
Provides the best response over a wide range of applications.
PTFE junction
The electrode has a unique clog resistant junction that enhances both probe life and accuracy.
PVDF body
PVDF offers characterized by high thermal stability and excellent chemical resistance.
Read More
| Measurement Range | ORP | |
| Junction Type/Flow Rate | PTFE | |
| Type of Electrolyte | Polymer | |
| Body Material | PVDF | |
| Tip / Shape | Flat | |
| Matching Pin | Yes | |
| Max. Pressure | 6 bar (87 psi) | |
| Temperature Sensor | No | |
| Cable | 15m | |
| Connector Type | BNC | |
| Amplifier | Yes |
