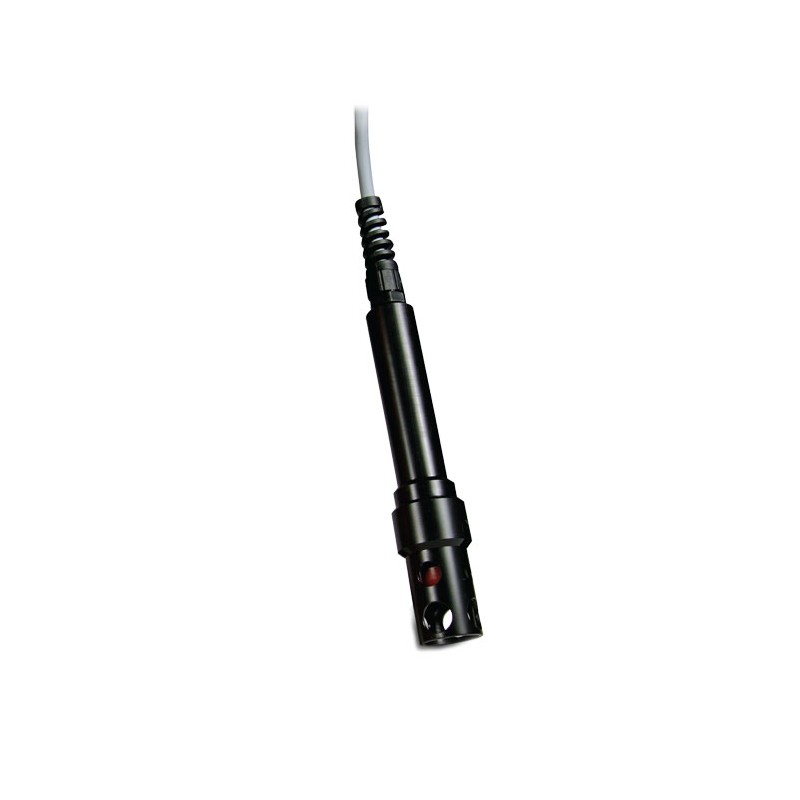

HI-76409/10 Galvanic Dissolved Oxygen Probe, 10m with Built-in Temperature Sensor
In Stock 4 Items available
HI-76409/10
Hanna Dissolved Oxygen probes are extremely rugged and perfect for laboratory and field applications.
The HI-76409/10 is for use with the HI-9147 and has a 10m cable.
The HI-76409 is a standard galvanic dissolved oxygen probe for use with the HI-9147 portable dissolved oxygen meter. Galvanic probes require no conditioning time and therefore allow the ability to measure instantaneously. With extreme portability and a straightforward design, this probe is ideal for both field and lab use.
The DO probe is provided with a membrane covering the galvanic sensors and a built-in thermistor for temperature measurement and compensation. The thin permeable membrane isolates the sensor elements from the testing solution but allows oxygen to enter. Oxygen that passes through the membrane causes a current flow from which the oxygen concentration is determined.
Spare membranes HI-76409A/P contains 5 ready-to-use replacements.
Read More
| Shielded, waterproof cable | Yes | |
| Flex protect | Yes | |
| Strain relief for cable | Yes | |
| Temperature sensors | Yes | |
| Anode | Zinc (Zn) | |
| Ag+ cathode | 3.5mm, pure silver | |
| Protective cap | Yes | |
| Cable lengths | 10m HI-76409/10, 4m order HI-76409/4 | |
| DO solutions | HI-7040L Zero oxygen solution set, 500ml +12g HI-7042S Refilling electrolyte solution (30ml) |
