HI-7638 Submersion Conductivity Sensor, 3 metre
In Stock 3 Items available
HI-7638
EC/TDS probe, ATC with NTC sensor for immersion installation.
This four-ring in-line probe measures conductivity in industrial applications with a platinum ring and NTC sensor for Automatic Temperature Compensation. With its durable design, you can count on this electrode to stand up to your process environment. EC/TDS probe, ATC with NTC sensor for immersion installations.
In-line Conductivity Probe with Platinum Ring
- Four-ring probes measure conductivity with platinum sensors.
- Built-in temperature sensor for Automatic Temperature Compensation.
- Built for everyday, demanding use in industrial applications.

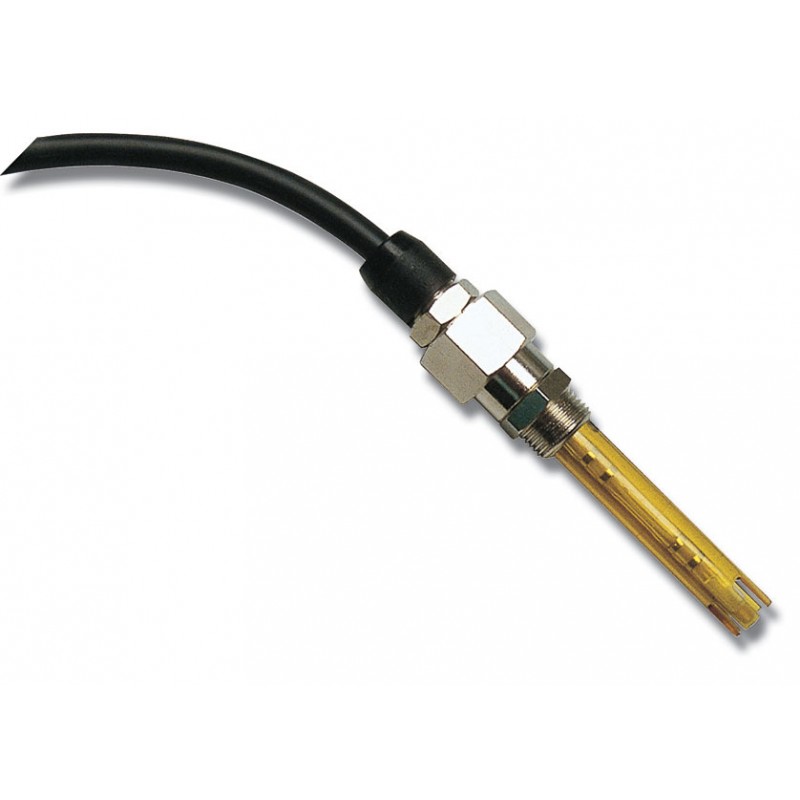

The HI-7638 is an in-line conductivity probe with colour coded wires and NTC sensor.
The HI-7638 conductivity probe combines the proven four-ring potentiometric method of measuring conductivity with platinum sensors. The universally acclaimed four-ring method provides an exceptionally stable measurement over a wider range. These probes do not suffer polarisation, nor do they need frequent calibration or cell changes.
The built-in temperature sensor for the HI-7638 allows automatically temperature compensated measurements and features easy operation and maintenance.
Key features
- In-line conductivity probe - Suitable for direct immersion in pipes.
- Four-ring method - Provides an exceptionally stable measurement over a wider range. These probes do not suffer polarisation, nor do they need frequent calibration or cell changes.
- NTC sensor - Provide accurate and effective temperature compensation.
- Colour-coded wires - Variety of cable lengths incorporating colour coded wires for easy connection to transmitters.
- Platinum sensor - Provides the best response over a wide range of applications.
PEI body - PEI bodied electrodes are rugged and suitable for non-critical applications that require a very good combination of chemical, mechanical, and thermal resistance.
