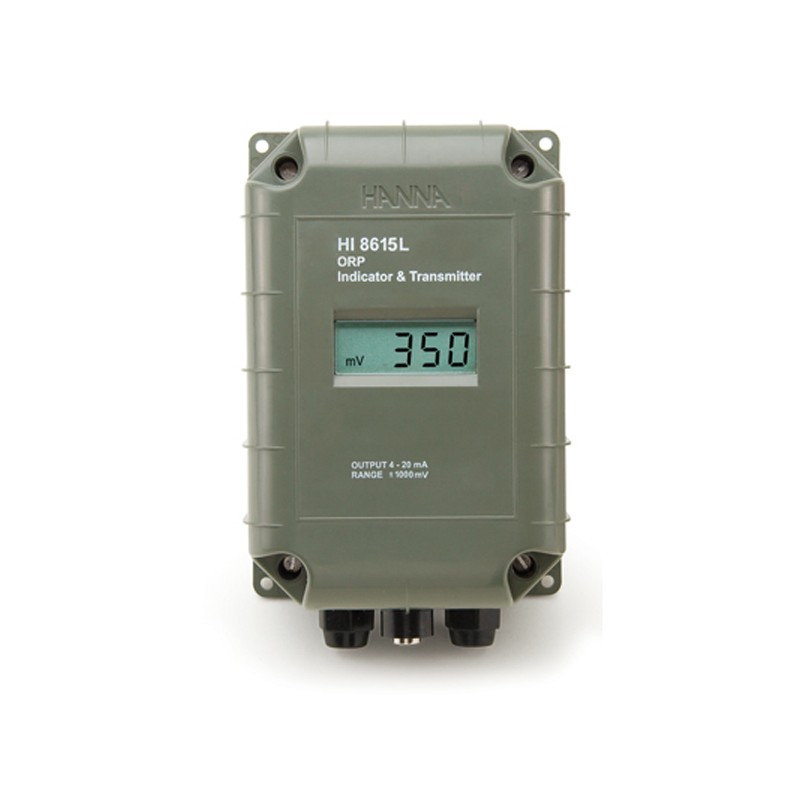

HI-8615LN ORP Transmitter
HI-8615LN
The HI-8615 range has been designed for transmitting ORP measurements from remote locations.
ORP Transmitter with 4-20 mA Galvanically Isolated output; with LCD display, HI 8615(L): ±1000 mV / 4-20 mA, HI 8615(L)-01: ±1999 mV / 4-20 mA.
HI-8615LN ORP Transmitter
This improved transmitter features two controls (one for 4 mA and one for 20 mA) to compensate for electronic drift and ambient temperature.
The HI-8615LN uses a universal BNC socket for quick and secure connection of any ORP electrode with a BNC connector.
An IP65 rating and a rugged ABS casing provide optimum protection even in harsh environments making this instrument ideal for chromium hexavalent reductions and water sanitation. The transmitter can be connected to HANNA meters HI-8512, HI-8720 or any recorders, PCs or data monitors that accept 4 to 20 mA input.
The HI-8615LN has a Liquid Crystal Display (LCD).
BNC Connection – BNC is one of the most commonly used connector types in pH meters and electrodes. Compatible with any meter or electrode that uses BNC connectors.
Replaceable Electrode – No need to replace the whole meter when the electrode needs replacing. Spare and replacement electrodes are available for this product.
Read More
| Range | +-1999mV; 4-20mA | |
| Resolution | 1 mV; 0.01 mA | |
| Accuracy (@20C/68F) | +-5mV; +-0.02mA | |
| Calibration | offset: +-100mV; +-0.8mA; slope 90 to 110%; +-0.8mA | |
| Input impedance | 1012 0hm | |
| Recorder Output | 4-20 mA (isolated) | |
| Protection | IP65 | |
| Power supply | 20-36VDC | |
| Load | max 500 0hm | |
| Environment | 0 to 50C (32 to 122F); RH max 95% non-condensing | |
| Dimensions | 165 x 110 x 71mm (6.5 x 4.3 x 2.8 inches) | |
| Weight | 1 Kg (2.2lb) |
